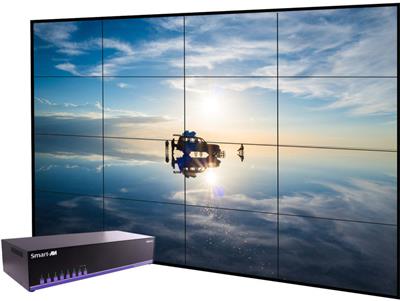

1x4 HDMI 4K UHD Video Wall Splitter (Cascadable)
Video Wall Systems #VW-HDMI-4K A-NeuVideo

1x4 HDMI 4K UHD Video Wall Splitter (Cascadable)

$2,459.00 $2,699.00 -9%

In stock — ships fast

Description :

KVMSwitchTech's VW-HDMI-4K Video Wall extends a selected source expanded across 4 output displays as one time in the latest 4K UHD@30Hz resolution. Supports full range of video resolutions up to WUXGA@60 (RB) or 1080p@60Hz and different audio formats up to 7.1CH LPCM at 192 kHz sampling rate based on input source capability. The VW-HDMI-4K control can be done through RS232 Telnet (Ethernet) with the included GUI software. One of the great advantages to this system over previous video walls is the ability to cascade the Video Wall and expand from a simple 2x2 configuration up to a 3x3 Video Wall with a total of 9 displays.



  • Fast shipping
  • Genuine warranty
  • RMA support
  • Expert help

Product Features

Product Features

  • HDMI with 4K2K supported, HDCP and DVI compliant
  • Output source signal to (4) displays as a full image with adjustable Bezel correction
  • Supports Input PC resolutions from VGA~WUXGA and HDTV from 480i~1080p and 4K2K@24/25/30Hz
  • Supports different input and output resolutions selectable from the TV wall application
  • Supports AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmos and DTS-HD Master Audio
  • Supports RS-232 and Telnet controls

Specifications

Video Bandwidth 300MHz/9GBps
Input Ports (1) HDMI (Female type), (1) Control (RJ45), (1) RS-232 (D-sub 9-pin), (1) USB (Service only)
Output Ports (4) HDMI (Female type)
HDMI Cable Distance 8bit 1080p ~32 ft/10M, 4K2K ~16 ft/5M
IR Frequency 30~50KHz
Baud Rate 115200Bps
ESD Protection Human body model
  • ± 8KV (air-gap discharge)
  • ± 4KV (contact discharge)
 Power Supply  12V 3A DC (US/EU standards, CE/FCC/UL certified)
 Dimensions (WxDxH)  17 x 10.5 x 1.75 in
 Weight  6.4 lb (Unit only) / 9.7 lb (Net)
 Chassis Material  Metal
 Color  Black
 Operating Temperature  0°C~40°C / 32°F~ 104°F
 Storage Temperature  −20°C~60°C / −4°F~140°F
 Relative Humidity  20~90% RH (non-condensing)
Power Consumption 12.98W


View user manual (PDF)
